Understanding Chromatography and Its Applications
What is Chromatography?
Chromatography is a technique that is used to divide, detect, and examine different chemical elements in a complex mixture. Chromatography uses the concept of a mobile phase that can be either a liquid or a gas and a stationary phase that interacts or absorb components of the mixture at different rates. This results in the separation of the mixture components from one another which makes it possible for a certain component to be studied at a time. Employed greatly in industries such as pharmaceuticals, environmental science, and biochemistry, chromatography is important for product development, drug control, and detecting very small quantities of impurity within complex materials. Moreover, its enhancements persist in addressing the present shortfall, encouraging the accurate and efficient analysis of challenging mixtures.
Applying Chromatography in Bioprocessing
Bioprocessing generates sequence of new biological goods of all ranges starting from medical and food to services in environmental protection. One of the most important processes in bioprocessing is the purification and analysis of biogenic substances namely proteins, nucleic acids and monoclonal antibodies. Every penetration of biogenic materials on stage referred to as downstream jobs involves these mentioned groups of modern chromatographic techniques such as ion-exchange chromatography, affinity chromatography and size exclusion chromatography aimed at maximum productivity and quality. An obvious example would be use of affinity purification to capture antibodies that are given to a patient in therapy, by exploiting a vast number of immobilised ligands specific interactions. Furthermore, chromatography is essential in maintaining the quality of the product due to the regulations in the development of biologics. New trends, like flow chromatography and multiple stepped processing, have been applied to increase the industrial use, minimize costs and meet the global demand for biopharmaceuticals easily.
Different Types of Chromatography Columns
As far as I am concerned, in the case of chromatography columns categorization may be achieved with respect to their design, functional application and certain characteristics that help in good separation. A simple example is the packed bed column (Figure 1), where a solid phase, such as resin or beads, fills the entire volume of the column. Such column is used in many areas of both, analytical and preparative chromatography and especially where molecules have to be separated on the basis of size, charge, or affinity. The simplest case is, for instance, size exclusion chromatography (SEC). Packed columns are used to separate the macromolecules, small molecules, or polymers, in particular, proteins of different molecular weights. Ion exchange chromatography (IEX), for example, employs charged resins in separating molecules, based on their net charges.
The membrane or monolithic column is the most prominent of all, providing one constant and locked support in such a way as to contain some porous material. These are much more effective compared to others due to the ease of back pressure and much better flow. For example, the use of monolithic columns is now extended to applications such as fast protein purification and virus filters especially in the biopharma sphere. Also, affinity chromatography columns are very sophisticated columns that congregate ligands for a particular molecule such as an enzyme or an antibody which is used in the purification of therapeutic proteins suited with high quality without significant apogees.
In addition to the above-mentioned as pre-packed disposable columns, there have also been creative advances designed specifically for single use in bioprocessing. These columns are finding their place in today’s biomanufacturing practices more and more assuring contamination preventive practices. Be it for research in small amounts or for producing in large amounts, the type of chromatographic column required is determined chiefly by the separation and the nature of the sample and the limitations associated with spectrum of the chromatography procedure.

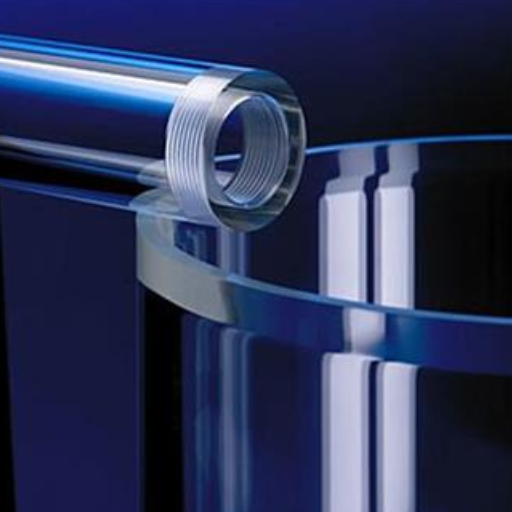

Features of Acrylic Chromatography Columns
Benefits of Using Acrylic Material
The usage of acrylic columns in chromatography as a solvent-filtration post has a number of positive aspects that make its application in biotechnology highly effective. The first best thing about acrylic is most definitely its’ long lasting nature and fracture-resistance which ensures the product’s quality even when the units are used for longer periods, again and again. The optical clarity of the material comes into play as it allows column contents to be seen and thus also helps in distributed data management which essentially implies the rapid identification of remedial and other corrective actions in the faulty process. In addition, due to its lightweight, acrylic can also be handled and transported easily which is important, especially in case of production on a very huge scale. Next, the material is durable against many chemicals, which makes it so easy to use it in many other applications that contain aggressive chemicals. Moreover, acrylic columns are very low priced and they are so useful in general and in laboratories in particular. With all these benefits and the structural improvement of these columns, the acrylic material has come to be the ideal choice in chromatography.
Acrylic in Chromatography
When referring to acetone or other glass materials, it becomes obvious that acrylic is lightweight and easy to use due to the low cost of handling. During transporting as well as working with fragile glass columns, the situation is different because they can break whilst acrylic ones cannot. Other materials, such as, for example, stainless steel, books, and, for example, also death masks are very practical in use and provide for reasonable increases in pressure. However, despite their exemplary performance, stainless steel columns tend to be much more expensive and, when coming into contact with certain chemicals, are prone to corrosion.
Additionally, there is the transparency offered, enabled by its chemical structure which allows for the easy portability of the system and offers a brown solder transparent enough for visualisation of the assembled contents. Such a feature alone glass offers too but it is less resistant to cracking and cannot fall freely without dramatically shattering as the transparent sheets of Acrylic can. The two disadvantages are smoothened by the aspect of improved stability of the Acrylic. This point is plausible enough as more institutions opine about the use of this type of material, particularly in their roster of new facilities.
Design Principles of Wide Acrylic Columns
Reasoned the design of large acrylic columns, there are a multitude of factors that I pay attention to in order to get the best performance in aesthetic terms and performance wise. To begin with, the structural robustness of the column is my emphasis. Although acrylic is a hard material, it has its boundaries as far as being subjected to high loads is concerned. This is why some standard of thickness and reinforcement is required for larger sizes. Also I make a design estimating the loads and environmental temperature and pressure in the future, compression tests, and even temperature tests to ensure that I am well prepared to handle the predicted usage. This makes sure there are no deviations such as bending, cracking or lowering of its quality over long years particularly in severe services.
Fabrication accuracy is another major factor that is worth emphasizing. It is not practical to achieve a desirable look the way it ought to when long lasting performance of acrylic plastic is ensured. One of my paramount concerns while manufacturing acrylic based items is warding off defects such as scratches and bubbles as these are known to lessen the materials load bearing capability and its optical quality. In fact in case of acrylics also, bonding, which is combining two or more components to make a rather elaborate final product, although the components are structurally very different, poses many challenges because very close tolerances are required in order to ensure that the components fit and also that any joint seals adequately without considerable application of external pressureor heating.
Last but not least, I closely koncentrate on technical problems such as maintenance and franchising. There is no need for this. Practically speaking, the structure of acrylic columns should facilitate access to the internal parts and often to the chambers for cleaning, maintenance or repair. Exemplary approaches involve use of smart designs with built-in modular elements with detachable modules within them. In case the consumer wants some additives like UV protection, antistatic or specific inbuilt coatings as additional elements of the product for enhancing its use under special conditions long term another facility is am available for such reliance. Such features of design are addressed to acrylic columns of larger sizes in their operational functionality and service engineering.

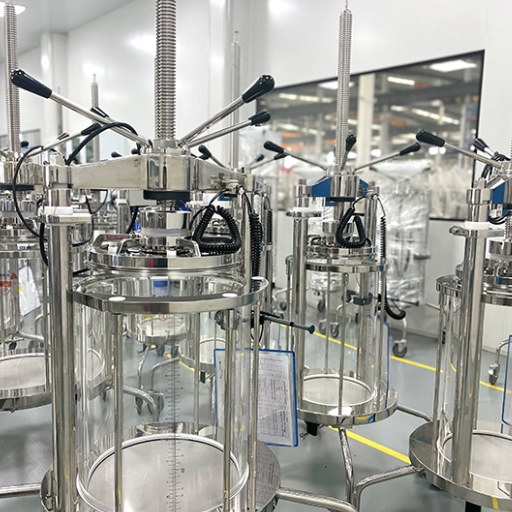

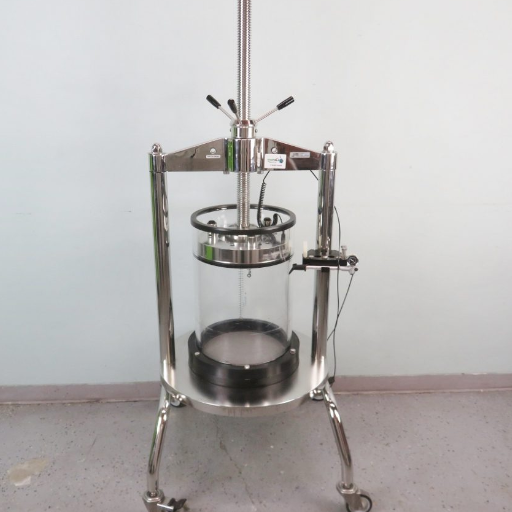

Choosing the Right Large Acrylic Chromatography Column
What to Take into Consideration when Purchasing Represents a Spectrum of Challenges
Setting your sights on an oversized acrylic column entails that a lot of crucial factors be taken into account if it is to meet the requirements. Thus, let the column’s size and the captured material of interest be what one is interested in. How big is the industrial pressure column is an important thing to bear in mind even though it varies from client to client because of the transaction. Some polymers are incompatible with certain organics or aggressive acids, so solvent and chemical compatibility assessments are also considered important.
The design of these structures, for example, whether a column is designed to have adjustable end fittings or the column management mechanism is simple. The column itself should be made of quality materials that have good workmanship and added antistatic and/or anti fouling treatments. In the end, even this website customer support and compatible parts usually pursued by professional staff of the company may greatly ease up the maintenance as well as ensure long term accessibility of the section. At the end of the day, the assessment of these factors is necessary; after which the chromatography process may become time effective and issues free.
About the Characteristics of Columns
Before itemizing and clarifying the steps that experts expect for a certain type of troubleshooting chromatography columns, it is critical to have a grasp of the fundamental features that relate to the entity. Essential figure of merit among others is the geometrical representation of the column or the column length and diameter which correspondingly affect the resolution and their execution time. The particle size and pore size of the stationary phase are also important as they influence separation efficiency and static and eluted capacity. Moreover, for proper functioning, it is important to consider the chemical compatibility of the method and how easy it is to clean as well as the design pressure of the column. Column related advances have introduced such a material which possesses characteristics as dear high temperature strength, superior recombined phases, easier chemical composition modifications and top surfaces that have special features which are very useful in analysis. If one is meticulous in evaluating the above specifications, he/she will be in a position to reproduce and obtain accurate chromatography results in the laboratory workflows.
Applications for Industrial Columns
Large-scale industrial separations and purifications would be impossible without process-scale columns. Among the many applications available for these are those in the pharmaceutical industry. There, they are used to isolate active pharmaceutical ingredients (APIs) in order to ensure the potency of the product and to eliminate toxicity that would be present in non-ideal mixtures. They are indicated to be core of most biopharmaceutical products including monoclonal antibodies and therapeutic biologicals purification.
Process scale columns are quite popular not just in the pharmaceutical sector, but even within the food and beverage industry, for example, the enhancement of sweetening agents and natural extracts. They are also important for environmental purposes owing to their ability to help enhance water and the situation of the water bodies and cleaning of water residuals in industries too. These columns are all the more advantageous due to their customizable and high capacity systems, which if not their primary function, is the other line of their utility, making them quite effective separation devices for such geographical arenas as industry.
Resin Selection for Liquid Chromatography Columns
Kinds of Resins Employed in the Field of Chromatography
Resin selection for chromatography is vital towards the realization of the best separation and purification capabilities. The usual resins in this process comprise ion exchange, size exclusion, hydrophobic interaction, and affinity resins.
Ion-Exchange Resins are employed as the molecules are separated on the basis of their charge. This kind of resins, these contain charged functional groups that attracts ions and hence molecules of the opposite charge are purified. This makes these resins efficient in the purification of proteins, nucleic acids, and other charged woek including DNA replication.
Size-Exclusion Resins are used to cope up with the problem of resolution and difficulties in separating the macromolecules. In this separation, larger molecules would elute faster as they travel to the pores and bypass the porous structure of the resins while small molecules would fill the pores into the column and take more time to elute. There, resins are the most commonly used slurry resins in macromolecular purification e.g polysaccharides, proteins purification.
Affinity Resins are those that utilize a specific antigen-antibody reaction or any biological interactions between a sample and specifically the ligand that is attached to the resin to purify certain components. In particular this method attracts a great deal of attention in the pharmaceutical industry when the antibodies, enzymes, and other biomolecules of interest have a strong biological affinity.
On the other hand Hydrophobic Interaction Resins vary with their molecule, size, and separation mode. Said resins are usually composed of hydrophobic groups, which interact with nonpolar regions of target molecules often applied for the separation of proteins or peptides under certain physical parameters.
Any given resin can be used to obtain its different benefits that is suitable for a particular field and the changes in resin technology help in increasing the performance of the resins in their usage ities and makes it compatible with the many system available in the market.
| Resin Category | Separation Mechanism | Primary Targets |
|---|---|---|
| Ion-Exchange | Molecular Charge Interaction | Proteins, DNA, Nucleic Acids |
| Size-Exclusion | Porous Structure Travel Time | Polysaccharides, Macromolecules |
| Affinity | Biological Antigen-Antibody Reaction | Therapeutic Proteins, Enzymes |
Resin Impact On Column Performace
The choice of resin significantly influences the performance and efficiency of chromatographic columns. The sizes of the resin particles, their porosity statistics and the amount of chemical groups that are available for interactions determine the resolution of the separation, the flow rates, and the sample loading capacity. Smaller particle sizes contribute to faster separation due to the increased surface area, but may also need higher pressures to operate. Meanwhile, highly porous resins may contain higher molecular weight compounds than other macros which is key for difficult bio processes. Progress in the field of resin development is marked by exrtensions of absorption capacities, improving chemical resistance and preference for use of organic liquid media over water for different applications. These new resin formulations are equally applicable to conveniently reducing the amount of time taken to process samples, increasing the overall flow rate to be suitable to the modern chromatography systems—whether it’s analytical or preparative—that require high speed.
Picking the Right Resin for the Task
I pay attention to both specificity and completeness of the processing phase while selecting the appropriate resin for my use. The most consideration, at first, would be inventorying the needs of the process and any specifics such as which molecule should be extracted, how much binding might be needed, and minimization or maximization of the desired resolution or purity. Charged molecules can be processed using ion-exchange resins, chargeless affinity resins are appropriate for substances like proteins and enzymes which require bonding that is only specific. This is because robust knowledge of the resin, and its molecular make-up especially of the particle size, pore size, and chemistry, is paramount to the fulfillment of the resin’s intended purpose in the complex applications where it is employed.
I will also inevitably consider the environmental parameters in operation, such as the range of pH values, degree of thermophysical endurance or the compatibility of certain solvents. The application of resins having a higher degree of chemical stability obviously warrants more vitriol conditions and, thus, corresponds them for the technologies of industrial level or for more selective chromatographic tasks. It is also important to look at how fast the resin regenerates and how often it needs to be replaced; this way, the user will understand the issues of efficiency and durability taking place in many cycles.
Before any action can be undertaken, it is important to have all relevant information being in hand and articles containing such insights are useful and usually manufacturer technical sheets with their specific products. I am convinced that it is also possible to go back to the development of resins to familiarize myself with innovative processing systems that aim to minimize loss and noise. In the final stage, the proper resin that has to be employed in practicing is decided upon basing on what is more important – the technical properties of the free resin, qualifications of the operation and standards of scaling them in the given problem.
Scalable Solutions for Process Development
Importance of scalability in Chromatography
In the perspective of driving the outcome of Chromatography in the realm of increasing the scale of Chromatographic separations one must consider scalability aspects. Scalability describes how well processes designed and performed at a fundamental level can be transferred to larger scale without major efficiency or quality losses. The most important aspects for scaling are those of preserving resolution losses, cost effective using flow rates of determination or expression, consistency of the column performance variaed with the scale. Direct employment of high reliable resins and advanced techniques exploiting columns makes it possible to replicate the separation processes economically and on a large scale. With the help of improvements in analytical devices, as well as process simulation software development, it can become possible to anticipate and prepare for challenges associated with enterprise scale up in bioprocessing.
Ways of enhancing Manufacturing Processes through Strategic Chromatography Duties Scaling
Any successful scaling up of chromatography processes hinges on the challenges that are technical and operational comprehension and well understanding. There is an imperative need here to consider one most important strategy which states the uniformity of the process design including similar heights of the column bed, flow rates, resin sample ratio across scales. The elimination of more than one’s share of the variations as a result. And the smooth transfer from the laboratory to production.
There are also the other measures of dealing with the situations like, for instance, process modeling and simulation with very high accuracy and in-depth demonstration. Predictive software and other methodology devices of today can enable the researchers to unveil any weaknesses and problems at the point of scale while optimization is still realistic. Proficiency in children’s equipment for improving and upgrading process lines, the advantages of high-throughput reaction and real-time diagnostics to process flexibility and the performance of constraints and agents is highlighted in enhancing the process robustness and reproducibility.
It is important to adjust the buffer systems and work on information of the gradient elution in the particular small systems only, since this cosmetic practice clearly helps to rstructuring the workflow without impairing the quality of the final products. Besides, working together across various functions, for instance between process engineers, analytical chemists and bioprocess engineers, makes it much easier to expand the manufacturing scale and deal with hitherto unexpected hurdles effectively. This can be seen as a factor that has enabled organizations to come up with bioprocesses that are cost-efficient and yet can be engineered to accommodate most industrial needs without any significant variations in quality of the product.
Common Challenges in Process Development
The optimization of process stages can be really difficult just because you need to juggle the need to make the most effective process possible. Overproduction of wastes impairs both societal and economic efficiency and also poses a challenge in optimizing yields. Also, ensuring and maintaining traceable manufacturing, which minimizes impurities, is very difficult through management. This is in addition to the level of process encapsulation required within equipment itself, and the resulting issues of different equipment being fitted with different automation. And also managing the regulatory environment such as – numerous quality management system is adjacent to resources and the expansion of process documentation. Furthermore, availability of resources, for instance, time, or even the lack of infrastructure and technologies will serve to limit processes of improvement. This all~all these require step by step plans, out of the box thinking and most of all organized teamwork across all the teams involved in the project to satisfy its aims.
Reference Sources
- Chromatography Equipment: Engineering and Operation: Covers manufacturers, equipment suppliers, and engineering.
- Chromatographic Systems: Maintenance and Troubleshooting: Comprehensive guide on maintenance and purchasing.
- Recent Advances in High Performance Liquid Chromatography: Highlights preparative columns with large diameters.
Frequently Asked Questions (FAQs)
What pore sizes and mole fractions are appropriate for larger acrylic liquid chromatography columns?
In this case, the right choice of a diameter, column height, as well as ;pore size, can only be made having in mind the specific lab-scale process development; quite often the scale chromatography is allocated to the larger diameters and longer columns. It is to be noted that µm is an important component in the chromatographic process and a suitable hole size of glass beads is carefully selected taking into account, which depends on the nature of the protein to be purified and the material of chromatography media; such as the coarse is good for large size molecules. PM manufacturers most of the times mention dimensions like mm in internal diameter and bed height units which quite helps in calculating compact withdried volume in units of flow rates. The columns provide a variety of column technology options such as empty acrylic column models and premade columns which let users requiring a large quantity of resolution to choose more suitable versions made. Packed column is when you should not forget to correctly adjust pore and resonance particle size (µm) in order to avoid too high pressure clearance and problems with fractionation effectiveness.
How can the large column of the high band performance scale be filled up and qualified for protein purification and subsequent use?
Column packing is a very critical aspect in packing: perform the packing either by gravity, step packing or controlled flow filling in using compatible resin for chromatography and if necessary follow protocols for the use of any form of axial compression to narrow the bed height. Qualification tests should inlude determining the uniformity of the pack, pressure cycling up to a certain pressure and using look for chromatographic performance comparing that with standard datasets or possibly in-house reagents describing recovery and resolution. Quite often, especially in small scale operations, a molecular weight marker or a protein to be used in the study is implanted into the column before any experiment. For higher level of process validation however, leakage in and around columns should be checked more, the frits need to be and checked that in not cracked in any way and that they were not forced during the assembly of the frits and cartridge components which often leads to channelling. Qualification documentation is also mandated as envisaged in the r&d and process development stages.
Do you think that the height of the acrylic column will solve the contamination concerns more than glass columns?
Yes, an acrylic column could be a practical replacement for a glass column for addressing the issues of cross-contamination and ease of handling, since the column is less likely to break and is also lighter than a glass column. For chromatography, acrylic support can be compatible with many mediums with either single-use or reusable workflows, depending on the construction and related cleaning in place protocols. For customers who are very wary of contamination, give preference to such prepacked columns or cartridges for one time use that should be discarded after one use to avoid the risk of contamination from the previous run. When shopping for a clear reuse, however, prepare the highest cleaning protocol an an analytic addition to eliminate the remaining proteins and other limitations. The frits are specified by materials and patterns which decrease void volume and help in avoiding any mistakes related to mixing very resistant eluents and sample run through unwanted parts of the column.
Is it possible to analyze and prepare various proteins with these columns using ion-exchanging chromatography, affinity chromatography, and so on?
agreesAcrylic large columns are generally designed to be readily utilized for ion exchange, affinity and size exclusion chromatography as well depending on the chromatography resin selected and their packing or the prepacked columns you procure. When you intend to work with proteins and other samples in non-isolated systems while needing flexibility, consider using a column with interchangeable cartridges or with the capability to unpack and redo the chromatography using different media. The enhancement of resolution and the enhancement of the analysis rate are determined by the flow rate and bed height of the column, so these must be variedantly changed depending on the conditions of the protein and the size of the selected resin particle (µm). For example, in the case of affinity seprations, the columm and frit coatings must be designed, so that they can suppport the surface layer moieties of the ligand and minimimum use of harsh cleaning regime in an attempt to try and clean the resin. A number of columns that are intended for generation of the method are made so that they can be also used at the next stage of development at the manufacturing scale in automatic chromatographic systems.
What pressure and flow rate limits should I expect, and are these columns suitable for low pressure versus higher pressure applications?
Most large acrylic chromatography columns are typically designed for low-pressure chromatography (ranging at about 3 bar), however, this is only approximate and the actual specifications vary so make sure to explore the particular capabilities of the column in question. These systems can bear the load with many conventional chromatography materials such as agarose beads and large granular particles allowing for gentle operation of thermal fragile proteins and reducing the rate of stress. In case you need to apply higher pressure for your target application, then such columns are rated for higher pressure and in any other case use silicas or materials and designs suitable for High performances. Greater flow rates come with larger column diameter as well as bed height, and relative sizes of the resin particles; while greater diameters of columns facilitate higher volumetric flow rates while maintaining the first given reasonable linear velocities. Always be sure to select the approaches scoped for the type of chromatography media and the separation actually aiming at in order to avoid tearing and purification compromises to the column.
Are pre-packed and clean options available from suppliers and how are they useful in the r&d and lab scale?
Manufacturers are accustomed to offering acrylic columns, a pre-packed and an empty solution. In a pre-packed cartridge, one can easily find them ready to use or rather the empty frame without any packing in it so that one can use another chromatography medium for their method evaluation. Pre-packed columns have the advantage of cutting the setup time and do not require the user to pack the column, thus making them preferred by the R&D and lab users who want quick reproducible results. Conventional columns are not very useful if reuse has not always been completely avoided. Including during disposal operations, wash activities as well as over a period of time may still give rise to contamination issues. When designing for, and qualifying use, generation of qualification and validation documents became an even more onerous duty. The customer then looks to the development of clean one-usage columns. Sometimes single fill and use columns are preferred over conventional columns (also termed free-standing separation units), or reusable columns. For instance, developing an empty column is good for testing various chromatography resins or packing a column for preliminary chromatography studies prior to method scale-up. Most users of chromatography equipment prefer to use prepacked cartridges in operation and deliver the naked column clean for method optimization.
